1PC 6S 15A 24V Lithium Protection Board For 6 Pack 18650 PCB BMS Li-ion Battery Cell Module

1PC 6S 15A 24V Lithium Protection Board For 6 Pack 18650 PCB BMS Li-ion Battery Cell Module


Product Details
Name Details
Buy now just US $2.59 US $0.01
Discount New User BONUS
Product id 1000005344413
Vendor MoonMall Store
Category Consumer Electronics - Power Source
Buy Now On Aliexpress
Power Source
Power Source
Power Source
Power Source


Description :

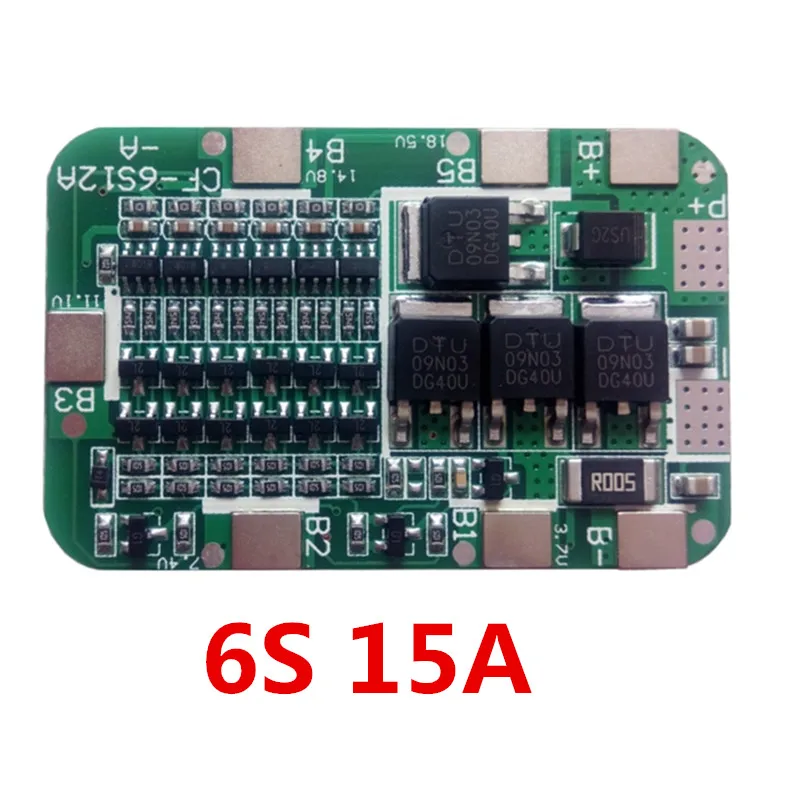

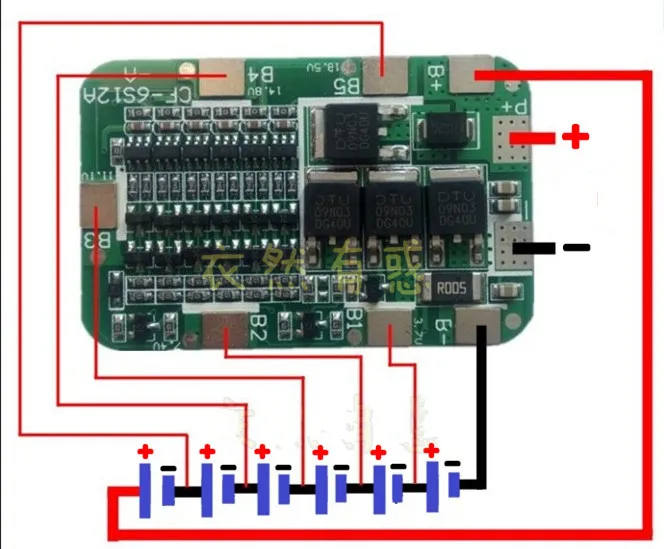

1*6S 15A  Lithium protection board

As the lithium battery itself determines the material itself can not be overcharge, over discharge, overcurrent, short circuit and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow a protective resistor with a sampling resistor and a current fuse.

Balanced Charge: None

Battery: Nominal 3.7V lithium battery

Charging current: 15A (MAX)

Charging voltage: 25.5V

Feature:

Fine workmanship and durable.

For the rechargeable (generally refers to the lithium battery) from the protection of the integrated circuit board. Lithium battery (rechargeable type) so need protection.

Instantaneous discharge current: 25A

Lampshift maximum discharge current: 15A

Main circuit conduction resistance: ≤20mΩ

Over discharge detection voltage: 2.55 ± 0.08V

Overcharge detection voltage: 4.28 ± 0.05V

Overcharge protection delay: 0.1S

Overcharge release voltage: 4.08 ± 0.05V

Overcurrent detection delay: 9MS

Overcurrent detection voltage: 150mV

Overcurrent protection current: 30 ± 3A

Overcurrent protection release condition: Disconnect the load

Overdischarge detection delay: 0.1S

Package included:

Short circuit detection delay: 250uS

Short circuit protection Release condition: disconnect negative open

Sleep current (battery over discharge) ≤10uA

Specification:

Temperature range: -30 / + 80 ℃

The overdischarge release voltage: 2.9 ± 0.1V

Working current: ≤30uA

Best Price Comparison With 1PC 6S 15A 24V Lithium Protection Board For 6 Pack 18650 PCB BMS Li-ion Battery Cell Module


1PCS 6S 15A 24V PCB BMS Protection Board For 6 Pack 18650 Li-ion Lithium Battery Cell Module diy kit

Denim Jeans

US 1.22
1PCS 6S 15A 24V PCB BMS Protection Board For 6 Pack 18650 Li-ion Lithium Battery Cell Module diy kit
Buy Now On Aliexpress


TZT 6S 15A 24V PCB BMS Protection Board For 6 Pack 18650 Li-ion Lithium Battery Cell Module New Arrival

Denim Jeans

US 1.37
TZT 6S 15A 24V PCB BMS Protection Board For 6 Pack 18650 Li-ion Lithium Battery Cell Module New Arrival
Buy Now On Aliexpress


BMS 3S 4S 5S 6S 7S 8S 18650 Lithium Battery Charger Protection Board Power Bank Balancer Li-ion Lipo PCB Charging Equalizer

Denim Jeans

US 0.61 - 1.63
BMS 3S 4S 5S 6S 7S 8S 18650 Lithium Battery Charger Protection Board Power Bank Balancer Li-ion Lipo PCB Charging Equalizer
Buy Now On Aliexpress


24V 6S 40A 18650 Li-Ion Lithium Battery Poretect Board Solar Lighting Bms Pcb With Balance For Ebike Scooter

Denim Jeans

US 3.96
24V 6S 40A 18650 Li-Ion Lithium Battery Poretect Board Solar Lighting Bms Pcb With Balance For Ebike Scooter
Buy Now On Aliexpress


6S 15A 24V PCB BMS Protection Board For 6 Pack 18650 Li-ion Lithium Battery Cell Module diy kit

Denim Jeans

US 1.58
6S 15A 24V PCB BMS Protection Board For 6 Pack 18650 Li-ion Lithium Battery Cell Module diy kit
Buy Now On Aliexpress


1PCS New Arrival 6S 15A 24V PCB BMS Protection Board For 6 Pack 18650 Li-ion Lithium Battery Cell Module

Denim Jeans

US 1.37
1PCS New Arrival 6S 15A 24V PCB BMS Protection Board For 6 Pack 18650 Li-ion Lithium Battery Cell Module
Buy Now On Aliexpress


6S BMS 15A 20A 25.2V 18650 lto Lithium Battery Balancer Pack Protection Circuit Equalizer Board Li-ion Balance Charging Module

Denim Jeans

US 2.71 - 6.20
6S BMS 15A 20A 25.2V 18650 lto Lithium Battery Balancer Pack Protection Circuit Equalizer Board Li-ion Balance Charging Module
Buy Now On Aliexpress

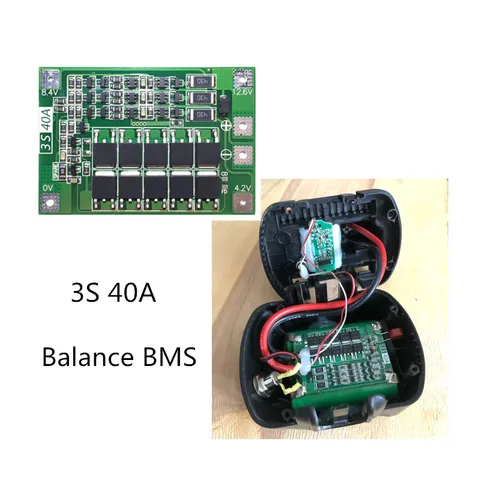

Smart electronics BMS /protection board 3S 40A for drill
