ISDS205B 5 IN 1 Multifunctional PC Based USB Digital Oscilloscop/Spectrum Analyzer/ DDS/Sweep/Data Recorder 20M 48MS/s Free Ship

ISDS205B 5 IN 1 Multifunctional PC Based USB Digital Oscilloscop/Spectrum Analyzer/ DDS/Sweep/Data Recorder 20M 48MS/s Free Ship


Product Details
Name Details
Buy now just US $86.00 US $59.34
Discount -31%
Product id 32353150677
Vendor Cleqee store
Category Tools - Measurement & Analysis Instruments
Buy Now On Aliexpress

Description :

By Cleqee

Dedicated customer service

Enjoy peace of mind with AliExpress door-to-door packaging and shipping protection

Features and specifications:

Features: - ISDS205B dual-channel digital oscilloscope - 20/48M sampling rate and high bandwidth - 2 channels, with alternating X-T and XY support -Supports DDS functions Specifications: • Model: ISDS205B • Channels: 2 • Impedance: 1MΩ 25pF • Coupling: AC/DC • Vertical resolution: 8-Bit • Gain range: -6 to 6 V (probe X1), -60 to 60 V (probe X10) • Vertical accuracy: ±3% • Time base range: 1 ns – 20 s • Input protection: Diode, 50Vpk • Autoset: Yes (10 Hz to 20 MHz) • Trigger mode: Auto, normal, and signal • Trigger type: No, rising edge, falling edge, rising edge or falling edge • Trigger level: Yes • Trigger source: CH1, CH2 • Buffer size: 1 MB/CH • Bandwidth: 20 MHz • Max sample: 48 MS/s • Vertical mode: CH1, CH2, ADD, SUB, MUL • Display mode: X, Y-T, X-Y • Measurements: Yes • Wave save: Osc (Private), Excel and Bmp Spectrum analyzers: • Channels: 2 • Bandwidth: 20 MHz • Algorithm: FFT (18 windows), correlation • FFT points: 8 - 1048576/CHN • FFT measure: Harmonic (1-7), SNR, SINAD, ENOB, THD, SFDR • Filter processing: FIR filter supports arbitrary range of frequency sampling method and rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, Kaiser, gaussand dolph_chebyshev, window method design • IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II", "Elliptic" type of filter design. Data Recorder: • Channel: 2 • Impedance: 1MΩ 25pF • Coupling: AC/DC • Vertical resolution: 8-Bit • Gain range: -6 to 6 V (probe X1), -60 to 60 V (probe X10) • Sample 1 channel: 1K - 24M Hz • 2 channel: 1K - 16M Hz • Save file: The maximum 4G, recording time associated with the sampling rate Sample points: • 1 M – 2 GB DDS: • Wave: Sine, Square (Duty circle variable), Triangle, Up Sa

Hot selling products from top sellers

Oscilloscope mainframe bottom view

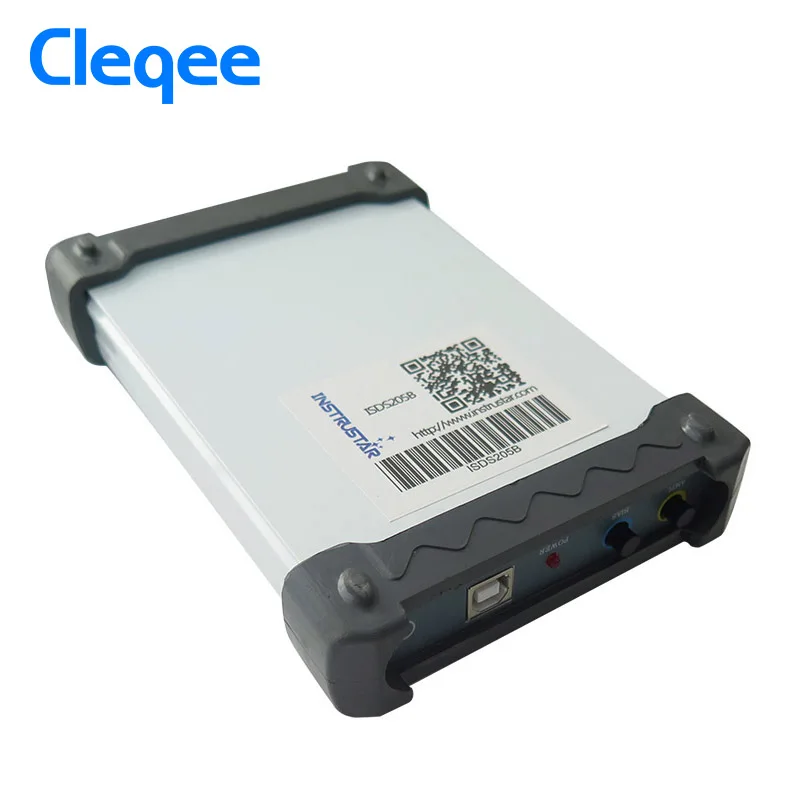

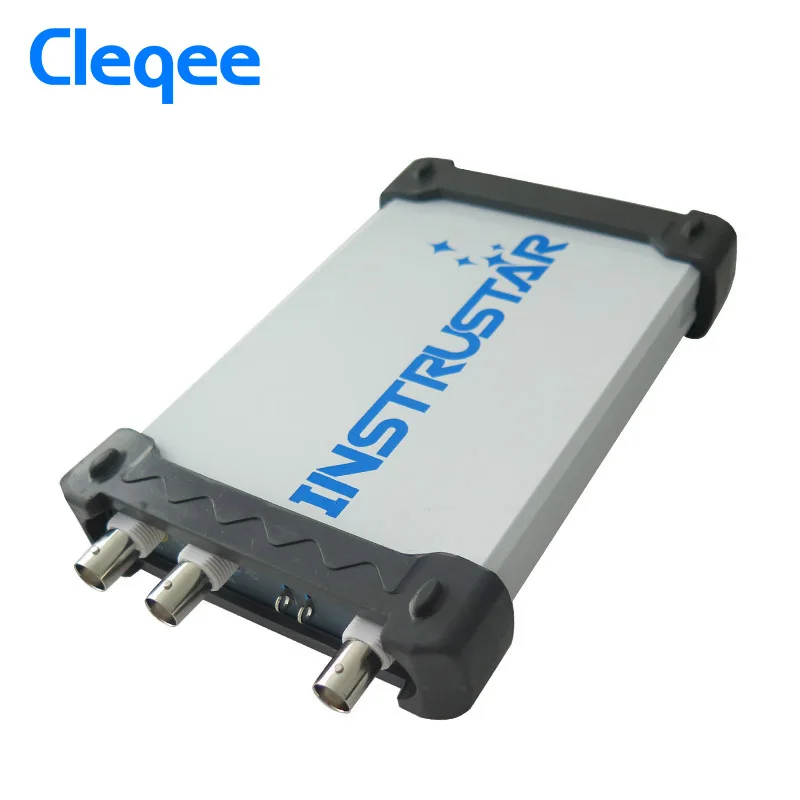

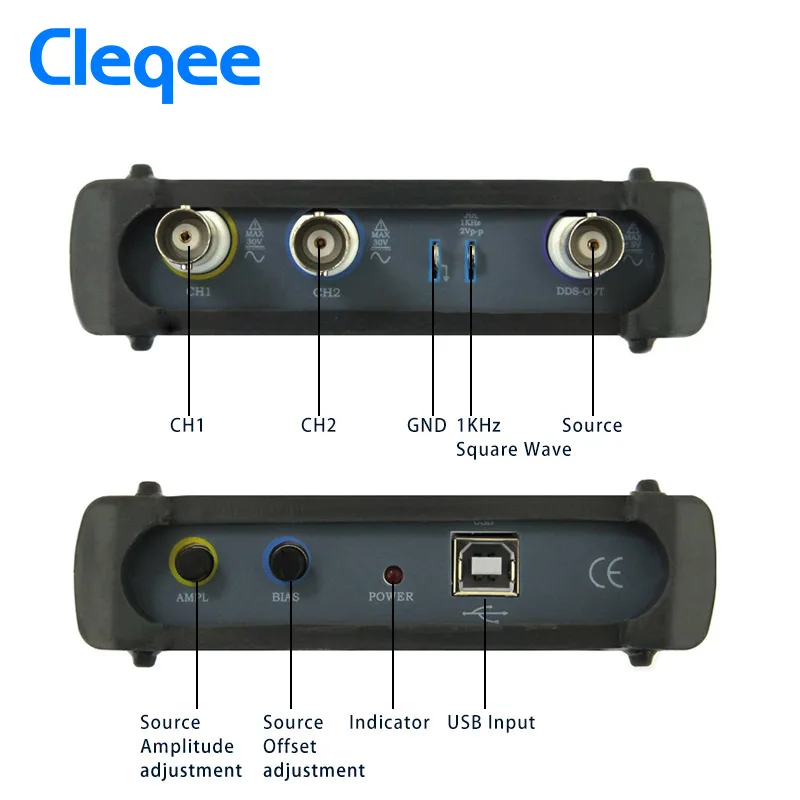

Oscilloscope side view

Oscilloscope side view

Oscilloscope side view

Oscilloscope side view

PACKAGING AND SHIPPING GUARANTEE

PC software operation interface display

PC software operation interface display

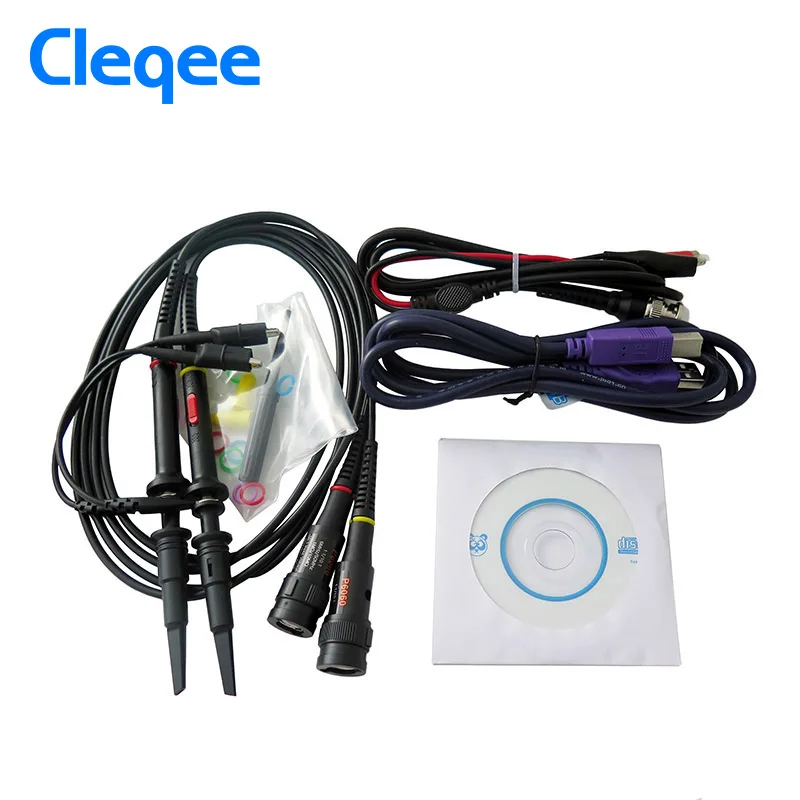

Product images

Product showcase

SERVICES

Virtual PC USB oscilloscope

Virtual oscilloscope mainframe

Virtual oscilloscope mainframe
